Proper valley flashing installation isn’t difficult to achieve.  In fact, following a few basic installation procedures will typically achieve a reliable installation.  Even so, a high percentage of valley flashings are not installed properly because the roof repair company does know the basics.  Or, these roofers know how to do the job right, but choose to cut corners (at your expense).  Regardless of the reason, when it is not installed properly the risk of significant interior damage is great.

Recommended procedures of basic valley flashing installation:

  • Install an underlayment centered in the roof valley.
  • Then, install a non-corrosive metal valley flashing of 24″ minimum width
  • Lap successive sheets of metal flashing a minimum of 12-inches and seal laps.
  • Apply an approximately 3-inch width of asphalt roofing cement along the sides of flashing and embed shingles in mastic
  • Clip the top corner of shingles along valleys to keep water flow toward center of valley.
  • Take care not to place any fasteners in the exposed center area of the metal flashing.
  • Extend entire width of flashing “completely” to the bottom of the roof valley.
  • Cut bottom of flashing so the entire width of the valley flashing extends approximately 1/2″ to 3/4″ over the fascia trim board along eaves.

The following photos illustrate removal and replacement of a closed cut valley with new open metal valley.

closed cut valley repair

Shingles being removed in closed cut valley

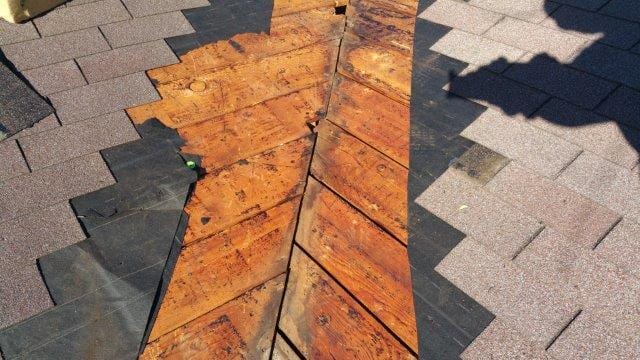

closed cut valley replaced with metal

All shingles removed from closed cut valley

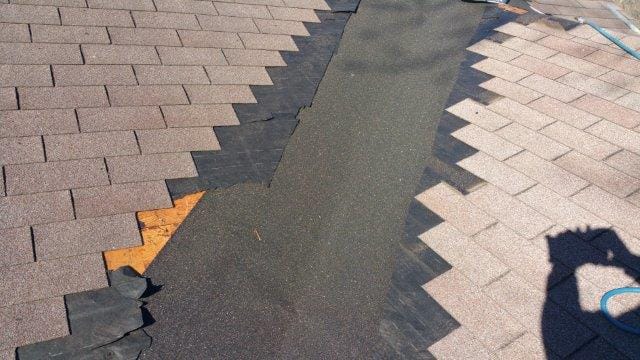

Preparing to install metal valley flashing

Ice barrier underlayment installed in roof valley

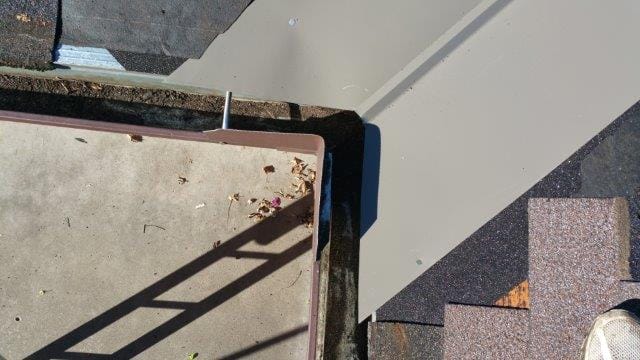

Image of flashing properly installed - cut at bottom of roof.

Entire width of new metal flashing properly extends over fascia at bottom of roof

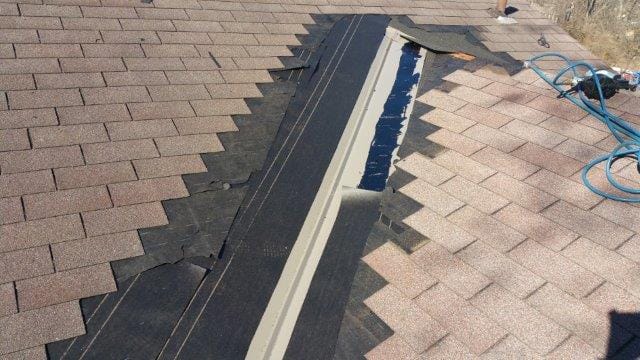

image of mastic applied along sides of valley

Roof mastic applied along sides of valley flashing

correct image of metal valley flashing

Closed cut valley fully replaced with new metal valley flashing.

Avoid the following common errors:

  • Fasteners placed in the exposed center area
  • Punctures in the center of the valley
  • Failure to extend the entire width of the metal valley flashing beyond the eave of the roof.
  • Installing a “closed” valley (a.k.a. installing “laced” shingles in a roof valley) when shingle manufacturer does not approve of.
  • Installing corrosive type metal flashing in valley
